Product Introduction for Medical Use

archelis-for-medical-use_surgeon-wearing-archelis

Product introduction
for Medical

archelis for Medical

Exoskeleton assist suit which enables long-hour standing works without stress on legs and lower back

By supporting the body in a standing position, the fatigue of the body caused by long-hour standing works is greatly reduced. By balancing and supporting your weight with your shins and thighs, your body trunk is kept stable, making you relieved from back pain

Feature 1.
Freely walk and sit anywhere you want

Thanks to comfortable fitting and right-and-left separated structure,
it enables you to repeat “walking” and “sitting” freely with wearing it.

アルケリスは電源不要のため、バッテリー切れや充電を気にする必要がありません

Feature2.
No power supply needed

Only a mechanical structure, without power supply or
motor, makes it work. You don’t have to worry about
running out of battery or charging.

アルケリスは様々な体型の方が簡単な調整で装着可能です

Feature 3.
Easy to wear for any height or body type

Just fasten three places on foot, shin, and thigh
on each leg by yourself. Now you can start using it.

Modes

The product provides 3 modes to suit different levels of
ease in walking and standing position retention.
You can switch modes using the locking dials on knees.

Free mode

Easier to walk than other modes. You can bend your knees freely, and there are no restrictions on movement of your legs.This mode does not support the standing position.

Archelis mode

This mode is hybrid mode enabling both of walking and standing body support. Support your body with your knees bent slightly.

Standing mode

This mode supports the standing body. At first glance, it looks like just standing, but the user can maintain the posture without any fatigue.

Compare Archelis

Archelis has different parts structure and materials
3 types.
You can select the type that suits your work environment and process.

スクロールできます
アルケリスFXスティック_製品外観
archelisFXstick
アルケリスFX_製品外観
archelisFX
アルケリス_製品外観
archelis
the lightest modelmobility and stabilityoutstanding stability
Weight
(size M, one leg)
1.8 kg2.1 kg2.7 kg
Material
(thigh, shin)
Flexcarbon®Flexcarbon®Metal
Foot structureアルケリスの足元パーツ_スティックアルケリスの足元パーツ_ラチェットバックルアルケリスの足元パーツ_ラチェットバックル
Max. load weight
(size M)
~80 kg~80 kg~90 kg
Mobilityアルケリス装着中の歩きやすさ_非常に歩きやすいアルケリス装着中の歩きやすさ_歩きやすいアルケリス装着中の歩きやすさ_普通
Wearabilityアルケリスの装着のしやすさ_とても簡単アルケリスの装着のしやすさ_簡単アルケリスの装着のしやすさ_普通
ContactContactContact

Product specifications

 product name archelisFXstick archelisFX archelis
 product code arFXS001 arFX001 ar001
material
(thigh, shin)
Flexcarbon Metal
Wearable height

145 – 165cm(size S)
160 – 185cm(size M)

Max. load weight 65kg(size S)
80kg(size M)
65kg(size S)
90kg(size M)
Size (one leg) 17.5× 28.0× 71.5cm(size S)
17.5× 28.0× 78.5cm(size M)
Weight (one leg 1.7kg(size S)
1.8kg(size M)
2.0kg(size S)
2.1kg(size M)
2.3kg(size S)
2.7kg(size M)
Color Carbon black Black / White
Accessory Dedicated stand

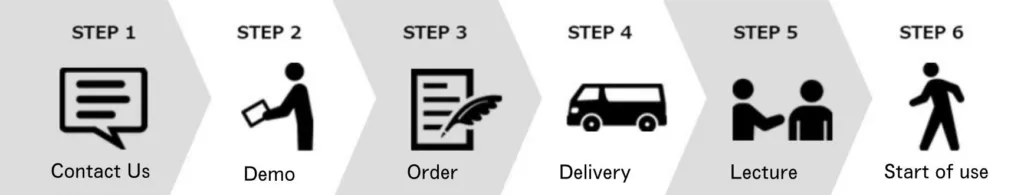

Steps to introduction

Plan

Sales / Rental(12months, 24months, 36months)

Price

​Inquiry to distributor

Distributors (domestic area)

If you are considering using this product, please contact the distributors in each region below.

■Hokkaido area
Takeyama Co., Ltd.
Inquiry form

株式会社竹山_ロゴ

■Tohoku area
Olympus Co., Ltd.
Handling area: Aomori, Akita, Iwate, Yamagata, Miyagi, Fukushima
Inquiry form

オリンパスマーケティング株式会社_ロゴ

■Kanto area
Olympus Co., Ltd.
Handling area: Gunma, Tochigi, Ibaraki, Saitama, Chiba, Tokyo, Kanagawa
Inquiry form

オリンパスマーケティング株式会社_ロゴ

■Chubu area
Central Japan Medical Link Co., Ltd.
Handling area: Nagano
Inquiry form

中日本メディカルリンク株式会社_ロゴ

■Hokuriku area
Tomiki Medical Instrument Co., Ltd.
Handling area: Ishikawa, Toyama, Fukui
Inquiry form

富木医療器株式会社_ロゴ

Masuda Medical Instruments Co., Ltd.
Handling area: Fukui
Inquiry form

株式会社増田医科器械_ロゴ

■Tokai area
Yagami Manufacturing Co., Ltd.
Handling area: Aichi / Mie / Gifu / Shizuoka
Inquiry form

株式会社八神製作所_ロゴ

Kyowa Medical Instruments Co., Ltd.
Handling area: Shizuoka / Aichi
Inquiry form

協和医科器械株式会社​_ロゴ

■Kinki area
Olympus Co., Ltd.
Handling area: Osaka / Nara
Inquiry form

オリンパスマーケティング株式会社_ロゴ

Masuda Medical Instruments Co., Ltd.
Handling area: Kyoto, Shiga, Nara, Osaka, Hyogo
Inquiry form

株式会社増田医科器械_ロゴ

Yayoi Co., Ltd.
Handling area: Hyogo prefecture, Osaka, Kyoto, Nara, Wakayama, Mie
Inquiry form

株式会社やよい_ロゴ

■Chugoku area
TS Alfresa Corporation
Handling area: Hiroshima, Okayama, Yamaguchi, Tottori, Shimane
Inquiry form

ティーエスアルフレッサ株式会社_ロゴ

■Kyushu / Okinawa area
Yamashita Medical Instruments Co., Ltd.
Handling area: Fukuoka, Saga, Oita, Nagasaki, Kumamoto, Miyazaki, Kagoshima
Inquiry form

山下医科器械株式会社_ロゴ

IT Eye Co., Ltd.
Handling area: Fukuoka, Saga, Oita, Nagasaki, Kumamoto, Miyazaki, Kagoshima, Okinawa
​Inquiry form

アイティーアイ株式会社_ロゴ

For areas other than the above, please contact the following
